Text from PDF Page: 023

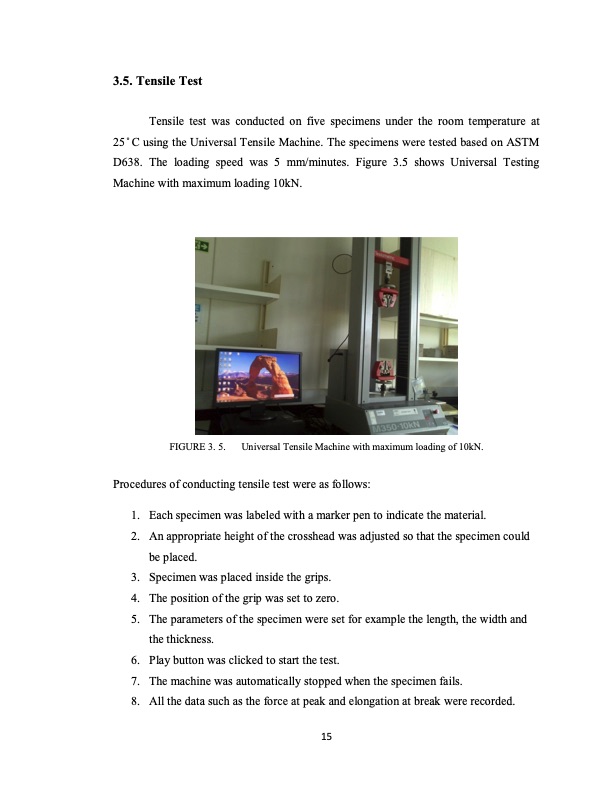

3.5. Tensile Test Tensile test was conducted on five specimens under the room temperature at 5 using the Univers l Tensile M chine The specimens were tested b sed on STM D638. The loading speed was 5 mm/minutes. Figure 3.5 shows Universal Testing Machine with maximum loading 10kN. FIGURE 3. 5. Universal Tensile Machine with maximum loading of 10kN. Procedures of conducting tensile test were as follows: 1. Each specimen was labeled with a marker pen to indicate the material. 2. An appropriate height of the crosshead was adjusted so that the specimen could be placed. 3. Specimen was placed inside the grips. 4. The position of the grip was set to zero. 5. The parameters of the specimen were set for example the length, the width and the thickness. 6. Play button was clicked to start the test. 7. The machine was automatically stopped when the specimen fails. 8. All the data such as the force at peak and elongation at break were recorded. 15PDF Image | Woven Kenaf Reinforced High Density Polyethylene HDPE
