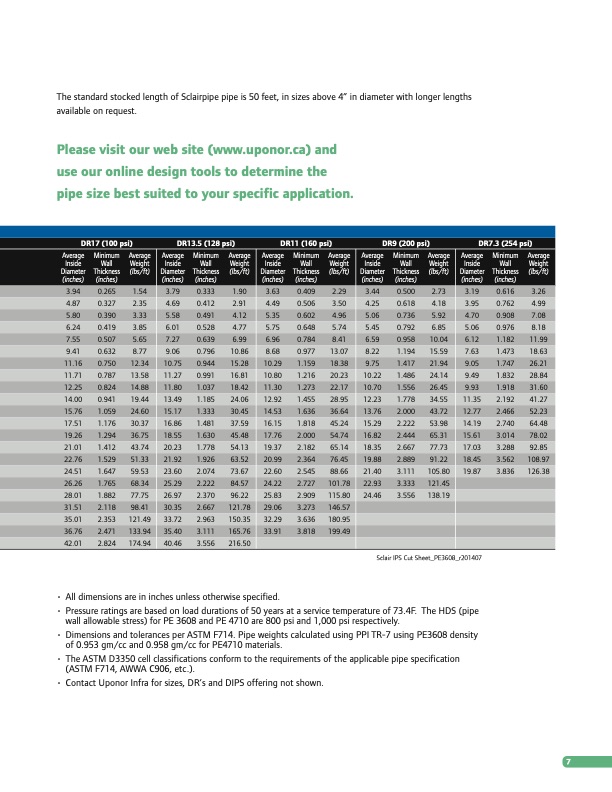

DR17 (100 psi) DR13.5 (128 psi) DR11 (160 psi) DR9 (200 psi) DR7.3 (254 psi) Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) 3.94 0.265 1.54 3.79 0.333 1.90 3.63 0.409 2.29 3.44 0.500 2.73 3.19 0.616 3.26 4.87 0.327 2.35 4.69 0.412 2.91 4.49 0.506 3.50 4.25 0.618 4.18 3.95 0.762 4.99 5.80 0.390 3.33 5.58 0.491 4.12 5.35 0.602 4.96 5.06 0.736 5.92 4.70 0.908 7.08 6.24 0.419 3.85 6.01 0.528 4.77 5.75 0.648 5.74 5.45 0.792 6.85 5.06 0.976 8.18 7.55 0.507 5.65 7.27 0.639 6.99 6.96 0.784 8.41 6.59 0.958 10.04 6.12 1.182 11.99 9.41 0.632 8.77 9.06 0.796 10.86 8.68 0.977 13.07 8.22 1.194 15.59 7.63 1.473 18.63 11.16 0.750 12.34 10.75 0.944 15.28 10.29 1.159 18.38 9.75 1.417 21.94 9.05 1.747 26.21 11.71 0.787 13.58 11.27 0.991 16.81 10.80 1.216 20.23 10.22 1.486 24.14 9.49 1.832 28.84 12.25 0.824 14.88 11.80 1.037 18.42 11.30 1.273 22.17 10.70 1.556 26.45 9.93 1.918 31.60 14.00 0.941 19.44 13.49 1.185 24.06 12.92 1.455 28.95 12.23 1.778 34.55 11.35 2.192 41.27 15.76 1.059 24.60 15.17 1.333 30.45 14.53 1.636 36.64 13.76 2.000 43.72 12.77 2.466 52.23 17.51 1.176 30.37 16.86 1.481 37.59 16.15 1.818 45.24 15.29 2.222 53.98 14.19 2.740 64.48 19.26 1.294 36.75 18.55 1.630 45.48 17.76 2.000 54.74 16.82 2.444 65.31 15.61 3.014 78.02 21.01 1.412 43.74 20.23 1.778 54.13 19.37 2.182 65.14 18.35 2.667 77.73 17.03 3.288 92.85 22.76 1.529 51.33 21.92 1.926 63.52 20.99 2.364 76.45 19.88 2.889 91.22 18.45 3.562 108.97 24.51 1.647 59.53 23.60 2.074 73.67 22.60 2.545 88.66 21.40 3.111 105.80 19.87 3.836 126.38 26.26 1.765 68.34 25.29 2.222 84.57 24.22 2.727 101.78 22.93 3.333 121.45 28.01 1.882 77.75 26.97 2.370 96.22 25.83 2.909 115.80 24.46 3.556 138.19 31.51 2.118 98.41 30.35 2.667 121.78 29.06 3.273 146.57 35.01 2.353 121.49 33.72 2.963 150.35 32.29 3.636 180.95 36.76 2.471 133.94 35.40 3.111 165.76 33.91 3.818 199.49 42.01 2.824 174.94 40.46 3.556 216.50 The standard stocked length of Sclairpipe pipe is 50 feet, in sizes above 4” in diameter with longer lengths available on request. Please visit our web site (www.uponor.ca) and use our online design tools to determine the pipe size best suited to your specific application. • All dimensions are in inches unless otherwise specified. • Pressure ratings are based on load durations of 50 years at a service temperature of 73.4F. The HDS (pipe wall allowable stress) for PE 3608 and PE 4710 are 800 psi and 1,000 psi respectively. • Dimensions and tolerances per ASTM F714. Pipe weights calculated using PPI TR-7 using PE3608 density of 0.953 gm/cc and 0.958 gm/cc for PE4710 materials. • The ASTM D3350 cell classifications conform to the requirements of the applicable pipe specification (ASTM F714, AWWA C906, etc.). • Contact Uponor Infra for sizes, DR’s and DIPS offering not shown. Sclair IPS Cut Sheet_PE3608_r201407 7PDF Image | VERSATILE HIGH DENSITY POLYETHYLENE PIPE
