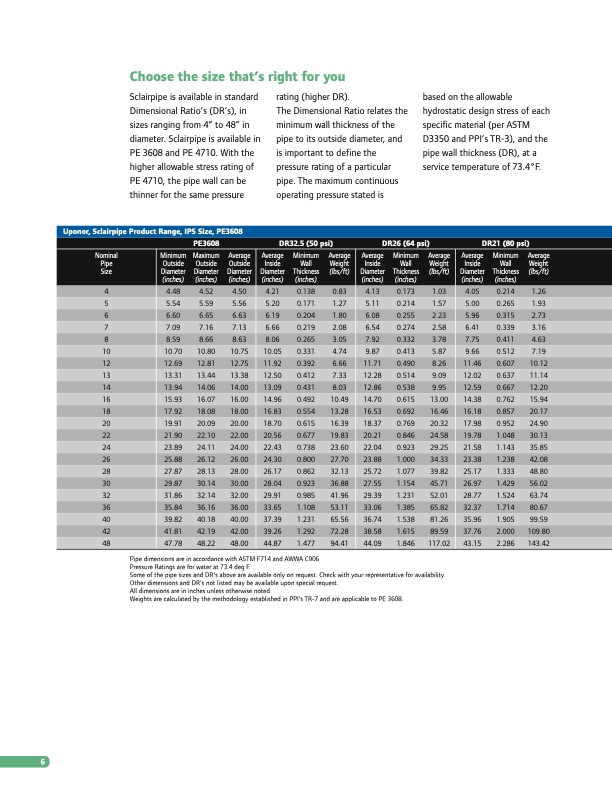

Text from PDF Page: 006
7 8 10 12 13 14 16 18 20 22 24 26 28 30 32 36 40 42 48 Choose the size that’s right for you Sclairpipe is available in standard Dimensional Ratio’s (DR’s), in sizes ranging from 4” to 48” in diameter. Sclairpipe is available in PE 3608 and PE 4710. With the higher allowable stress rating of PE 4710, the pipe wall can be thinner for the same pressure rating (higher DR). The Dimensional Ratio relates the minimum wall thickness of the pipe to its outside diameter, and is important to define the pressure rating of a particular pipe. The maximum continuous operating pressure stated is based on the allowable hydrostatic design stress of each specific material (per ASTM D3350 and PPI’s TR-3), and the pipe wall thickness (DR), at a service temperature of 73.4°F. Uponor, Sclairpipe Product Range, IPS Size, PE3608 PE3608 DR32.5 (50 psi) DR26 (64 psi) DR21 (80 psi) Nominal Pipe Size Minimum Maximum Average Outside Outside Outside Diameter Diameter Diameter (inches) (inches) (inches) 7.09 7.16 7.13 8.59 8.66 8.63 10.70 10.80 10.75 12.69 12.81 12.75 13.31 13.44 13.38 13.94 14.06 14.00 15.93 16.07 16.00 17.92 18.08 18.00 19.91 20.09 20.00 21.90 22.10 22.00 23.89 24.11 24.00 25.88 26.12 26.00 27.87 28.13 28.00 29.87 30.14 30.00 31.86 32.14 32.00 35.84 36.16 36.00 39.82 40.18 40.00 41.81 42.19 42.00 47.78 48.22 48.00 Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) 6.66 0.219 2.08 8.06 0.265 3.05 10.05 0.331 4.74 11.92 0.392 6.66 12.50 0.412 7.33 13.09 0.431 8.03 14.96 0.492 10.49 16.83 0.554 13.28 18.70 0.615 16.39 20.56 0.677 19.83 22.43 0.738 23.60 24.30 0.800 27.70 26.17 0.862 32.13 28.04 0.923 36.88 29.91 0.985 41.96 33.65 1.108 53.11 37.39 1.231 65.56 39.26 1.292 72.28 44.87 1.477 94.41 6.54 0.274 2.58 7.92 0.332 3.78 9.87 0.413 5.87 11.71 0.490 8.26 12.28 0.514 9.09 12.86 0.538 9.95 14.70 0.615 13.00 16.53 0.692 16.46 18.37 0.769 20.32 20.21 0.846 24.58 22.04 0.923 29.25 23.88 1.000 34.33 25.72 1.077 39.82 27.55 1.154 45.71 29.39 1.231 52.01 33.06 1.385 65.82 36.74 1.538 81.26 38.58 1.615 89.59 44.09 1.846 117.02 5.96 0.315 2.73 6.41 0.339 3.16 7.75 0.411 4.63 9.66 0.512 7.19 11.46 0.607 10.12 12.02 0.637 11.14 12.59 0.667 12.20 14.38 0.762 15.94 16.18 0.857 20.17 17.98 0.952 24.90 19.78 1.048 30.13 21.58 1.143 35.85 23.38 1.238 42.08 25.17 1.333 48.80 26.97 1.429 56.02 28.77 1.524 63.74 32.37 1.714 80.67 35.96 1.905 99.59 37.76 2.000 109.80 43.15 2.286 143.42 Pipe dimensions are in accordance with ASTM F714 and AWWA C906 Pressure Ratings are for water at 73.4 deg F. Some of the pipe sizes and DR's above are available only on request. Check with your representative for availability. Other dimensions and DR's not listed may be available upon special request. All dimensions are in inches unless otherwise noted. Weights are calculated by the methodology established in PPI's TR-7 and are applicable to PE 3608. 6 4 5 6 4.48 4.52 4.50 5.54 5.59 5.56 6.60 6.65 6.63 4.21 0.138 0.83 5.20 0.171 1.27 6.19 0.204 1.80 Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) 4.13 0.173 1.03 5.11 0.214 1.57 6.08 0.255 2.23 Average Minimum Average Inside Wall Weight Diameter Thickness (lbs/ft) (inches) (inches) 4.05 0.214 1.26 5.00 0.265 1.93PDF Image | VERSATILE HIGH DENSITY POLYETHYLENE PIPE
PDF Search Title:
VERSATILE HIGH DENSITY POLYETHYLENE PIPEOriginal File Name Searched:
sclairpipe-general-info.pdfDIY PDF Search: Google It | Yahoo | Bing
