Text from PDF Page: 022

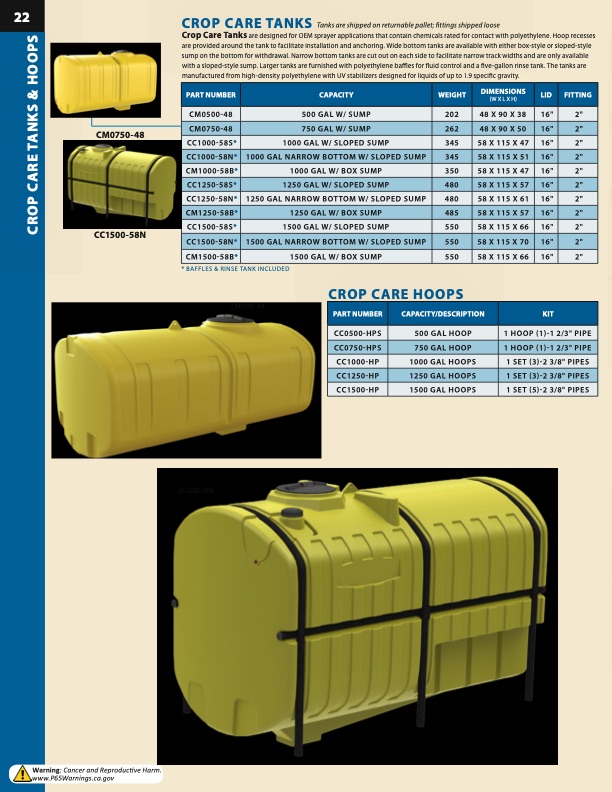

22 CROP CARE TANKS Tanks are shipped on returnable pallet; fittings shipped loose Crop Care Tanks are designed for OEM sprayer applications that contain chemicals rated for contact with polyethylene. Hoop recesses are provided around the tank to facilitate installation and anchoring. Wide bottom tanks are available with either box-style or sloped-style sump on the bottom for withdrawal. Narrow bottom tanks are cut out on each side to facilitate narrow track widths and are only available with a sloped-style sump. Larger tanks are furnished with polyethylene baffles for fluid control and a five-gallon rinse tank. The tanks are manufactured from high-density polyethylene with UV stabilizers designed for liquids of up to 1.9 specific gravity. PART NUMBER CAPACITY WEIGHT DIMENSIONS (W X L X H) LID FITTING CM0500-48 500 GAL W/ SUMP 202 48 X 90 X 38 16" 2" CM0750-48 750 GAL W/ SUMP 262 48 X 90 X 50 16" 2" CC1000-58S* 1000 GAL W/ SLOPED SUMP 345 58 X 115 X 47 2" CC1000-58N* 1000 GAL NARROW BOTTOM W/ SLOPED SUMP 345 58 X 115 X 51 16" 2" 16" CM1000-58B* 1000 GAL W/ BOX SUMP CC1250-58S* 1250 GAL W/ SLOPED SUMP 480 58 X 115 X 57 16" 2" 350 58 X 115 X 47 16" 2" CC1250-58N* 1250 GAL NARROW BOTTOM W/ SLOPED SUMP CM1250-58B* 1250 GAL W/ BOX SUMP 485 58 X 115 X 57 16" 2" 1500 GAL W/ SLOPED SUMP 480 58 X 115 X 61 16" 2" CC1500-58S* 550 58 X 115 X 66 2" CC1500-58N* 1500 GAL NARROW BOTTOM W/ SLOPED SUMP 550 58 X 115 X 70 16" 2" 16" CM1500-58B* 1500 GAL W/ BOX SUMP 550 58 X 115 X 66 2" CROP CARE HOOPS 16" PART NUMBER CAPACITY/DESCRIPTION KIT CC0500-HPS 500 GAL HOOP 1 HOOP (1)-1 2/3" PIPE CC0750-HPS 750 GAL HOOP 1 HOOP (1)-1 2/3" PIPE CC1000-HP 1000 GAL HOOPS 1 SET (3)-2 3/8" PIPES CC1250-HP 1250 GAL HOOPS 1 SET (3)-2 3/8" PIPES CC1500-HP 1500 GAL HOOPS 1 SET (5)-2 3/8" PIPES CM0750-48 CC1500-58N * BAFFLES & RINSE TANK INCLUDED CM0500-48 C C 15 0 0 - 5 8 N Warning: Cancer and Reproductive Harm. www.P65Warnings.ca.gov CROP CARE TANKS & HOOPSPDF Image | Blow Molding Injection Molding Rotational
