Text from PDF Page: 021

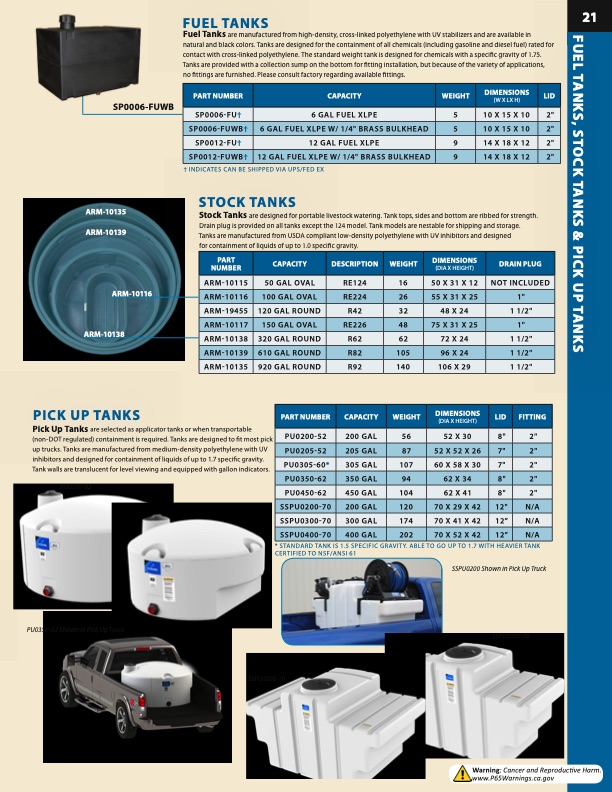

21 PART NUMBER CAPACITY WEIGHT DIMENSIONS (W X LX H) LID SP0006-FU† 6 GAL FUEL XLPE SP0006-FUWB† 6 GAL FUEL XLPE W/ 1/4" BRASS BULKHEAD 5 10 X 15 X 10 2" 5 10 X 15 X 10 2" SP0012-FU† 12 GAL FUEL XLPE 9 14 X 18 X 12 SP0012-FUWB† 12 GAL FUEL XLPE W/ 1/4" BRASS BULKHEAD 9 14 X 18 X 12 2" 2" PART NUMBER CAPACITY DESCRIPTION WEIGHT DIMENSIONS (DIA X HEIGHT) DRAIN PLUG ARM-10115 50 GAL OVAL RE124 16 50 X 31 X 12 NOT INCLUDED ARM-10116 100 GAL OVAL RE224 26 55 X 31 X 25 1" ARM-19455 120 GAL ROUND R42 32 48 X 24 1 1/2" ARM-10117 150 GAL OVAL RE226 48 75 X 31 X 25 1" ARM-10138 320 GAL ROUND R62 62 72 X 24 1 1/2" ARM-10139 610 GAL ROUND R82 105 96 X 24 1 1/2" ARM-10135 920 GAL ROUND R92 140 106 X 29 1 1/2" PART NUMBER CAPACITY WEIGHT DIMENSIONS (DIA X HEIGHT) LID FITTING PU0200-52 200 GAL 56 52 X 30 8" 2" PU0205-52 205 GAL 87 52 X 52 X 26 7" 2" PU0305-60* 305 GAL 107 60 X 58 X 30 7" 2" PU0350-62 350 GAL 94 62 X 34 8" 2" PU0450-62 450 GAL 104 62 X 41 8" 2" SSPU0200-70 200 GAL 120 70 X 29 X 42 12" N/A SSPU0300-70 300 GAL 174 70 X 41 X 42 12” N/A SSPU0400-70 400 GAL 202 70 X 52 X 42 12” N/A FUEL TANKS Fuel Tanks are manufactured from high-density, cross-linked polyethylene with UV stabilizers and are available in natural and black colors. Tanks are designed for the containment of all chemicals (including gasoline and diesel fuel) rated for contact with cross-linked polyethylene. The standard weight tank is designed for chemicals with a specific gravity of 1.75. Tanks are provided with a collection sump on the bottom for fitting installation, but because of the variety of applications, no fittings are furnished. Please consult factory regarding available fittings. † INDICATES CAN BE SHIPPED VIA UPS/FED EX STOCK TANKS Stock Tanks are designed for portable livestock watering. Tank tops, sides and bottom are ribbed for strength. Drain plug is provided on all tanks except the 124 model. Tank models are nestable for shipping and storage. Tanks are manufactured from USDA compliant low-density polyethylene with UV inhibitors and designed for containment of liquids of up to 1.0 specific gravity. SP0006-FUWB ARM-10135 ARM-10139 ARM-10116 ARM-10138 PICK UP TANKS Pick Up Tanks are selected as applicator tanks or when transportable (non-DOT regulated) containment is required. Tanks are designed to fit most pick up trucks. Tanks are manufactured from medium-density polyethylene with UV inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators. PU0350-62 PU0350-62 Shown in Pick Up Truck PU0200-52 * STANDARD TANK IS 1.5 SPECIFIC GRAVITY. ABLE TO GO UP TO 1.7 WITH HEAVIER TANK CERTIFIED TO NSF/ANSI 61 SSPU0200-70 SSPU0200 Shown in Pick Up Truck SSPU0300-70 Warning: Cancer and Reproductive Harm. www.P65Warnings.ca.gov FUEL TANKS, STOCK TANKS & PICK UP TANKSPDF Image | Blow Molding Injection Molding Rotational
