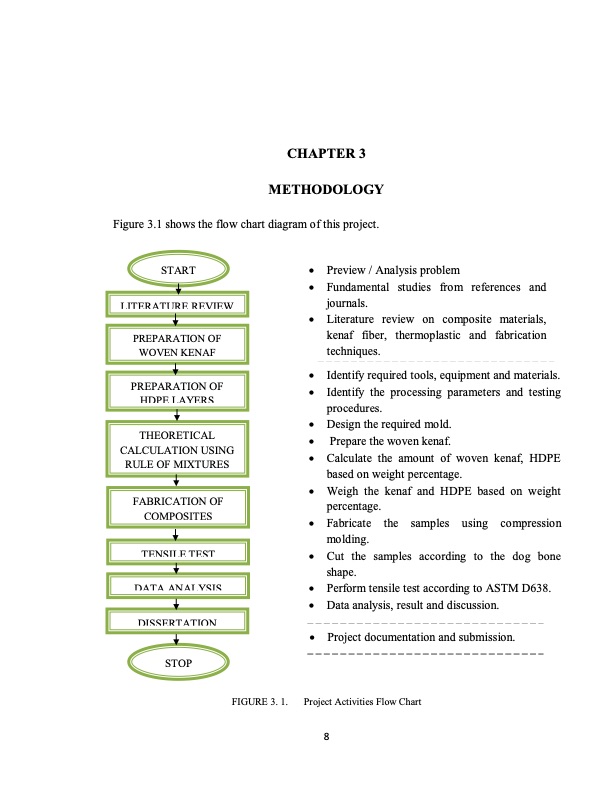

CHAPTER 3 METHODOLOGY Figure 3.1 shows the flow chart diagram of this project. Preview / Analysis problem Fundamental studies from references and journals. Literature review on composite materials, kenaf fiber, thermoplastic and fabrication techniques. Identify required tools, equipment and materials. Identify the processing parameters and testing procedures. Design the required mold. Prepare the woven kenaf. Calculate the amount of woven kenaf, HDPE based on weight percentage. Weigh the kenaf and HDPE based on weight percentage. Fabricate the samples using compression molding. Cut the samples according to the dog bone shape. Perform tensile test according to ASTM D638. Data analysis, result and discussion. Project documentation and submission. START LITERATURE REVIEW PREPARATION OF WOVEN KENAF PREPARATION OF HDPE LAYERS THEORETICAL CALCULATION USING RULE OF MIXTURES FABRICATION OF COMPOSITES TENSILE TEST DATA ANALYSIS DISSERTATION STOP FIGURE 3. 1. Project Activities Flow Chart 8PDF Image | Woven Kenaf Reinforced High Density Polyethylene HDPE
