Text from PDF Page: 023

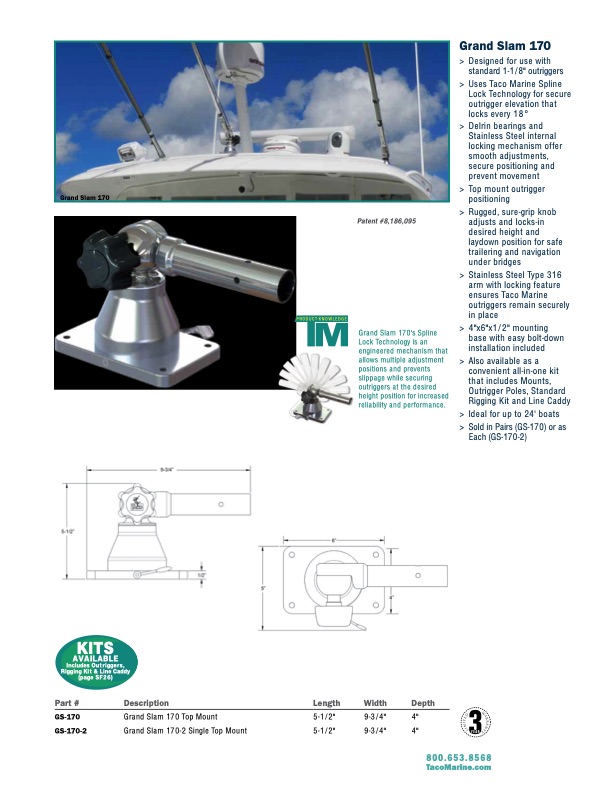

OUTRIGGER MOUNTS Grand Slam 170 PRODUCT KNOWLEDGE P F Patent #8,186,095 Grand Slam 170's Spline Lock Technology is an engineered mechanism that allows multiple adjustment positions and prevents slippage while securing outriggers at the desired height position for increased reliability and performance. Grand Slam 170 > Designed for use with standard 1-1/8" outriggers > Uses Taco Marine Spline Lock Technology for secure outrigger elevation that locks every 18° > Delrin bearings and Stainless Steel internal locking mechanism offer smooth adjustments, secure positioning and prevent movement > Top mount outrigger positioning > Rugged, sure-grip knob adjusts and locks-in desired height and laydown position for safe trailering and navigation under bridges > Stainless Steel Type 316 arm with locking feature ensures Taco Marine outriggers remain securely in place > 4"x6"x1/2" mounting base with easy bolt-down installation included > Also available as a convenient all-in-one kit that includes Mounts, Outrigger Poles, Standard Rigging Kit and Line Caddy > Ideal for up to 24' boats > Sold in Pairs (GS-170) or as Each (GS-170-2) KITS AVAILABLE Includes Outriggers, Rigging Kit & Line Caddy (page SF26) Part # GS-170 GS-170-2 Description Grand Slam 170 Top Mount Grand Slam 170-2 Single Top Mount Length 5-1/2" 5-1/2" Width Depth 9-3/4" 4" 9-3/4" 4" 800.653.8568 TacoMarine.com SF21
