Text from PDF Page: 021

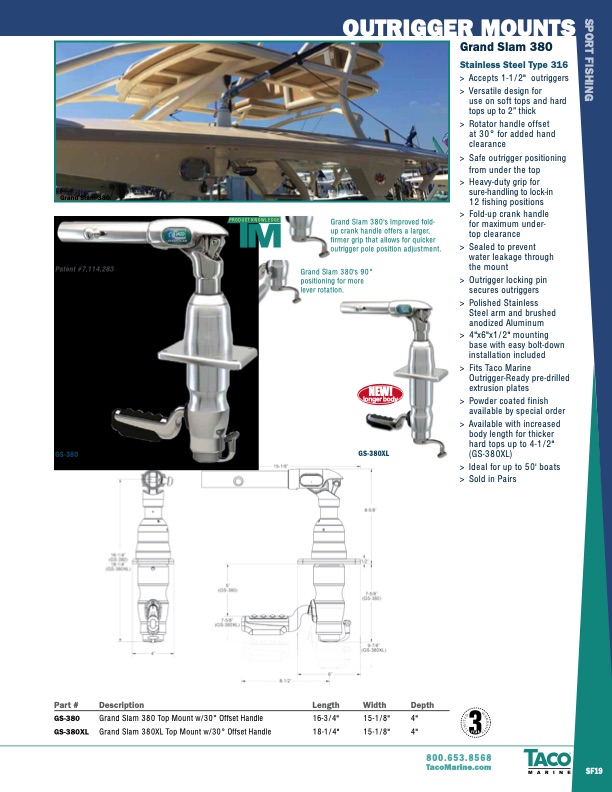

Patent #7,114,283 PRODUCT KNOWLEDGE FP Grand Slam 380's Improved fold- up crank handle offers a larger, firmer grip that allows for quicker outrigger pole position adjustment. Grand Slam 380's 90° positioning for more lever rotation. Grand Slam 380 Stainless Steel Type 316 > Accepts 1-1/2" outriggers > Versatile design for use on soft tops and hard tops up to 2” thick > Rotator handle offset at 30° for added hand clearance > Safe outrigger positioning from under the top > Heavy-duty grip for sure-handling to lock-in 12 fishing positions > Fold-up crank handle for maximum under- top clearance > Sealed to prevent water leakage through the mount > Outrigger locking pin secures outriggers > Polished Stainless Steel arm and brushed anodized Aluminum > 4"x6"x1/2" mounting base with easy bolt-down installation included > Fits Taco Marine Outrigger-Ready pre-drilled extrusion plates > Powder coated finish available by special order > Available with increased body length for thicker hard tops up to 4-1/2" (GS-380XL) > Ideal for up to 50' boats > Sold in Pairs OUTRIGGER MOUNTS Grand Slam 380 GS-380 GS-380XL Part # Description Length 16-3/4" 18-1/4" Width Depth 15-1/8" 4" 15-1/8" 4" GS-380 Grand Slam 380 Top Mount w/30° Offset Handle GS-380XL Grand Slam 380XL Top Mount w/30° Offset Handle 800.653.8568 TacoMarine.com SF19 sport fishing NEW! longer body
