Text from PDF Page: 017

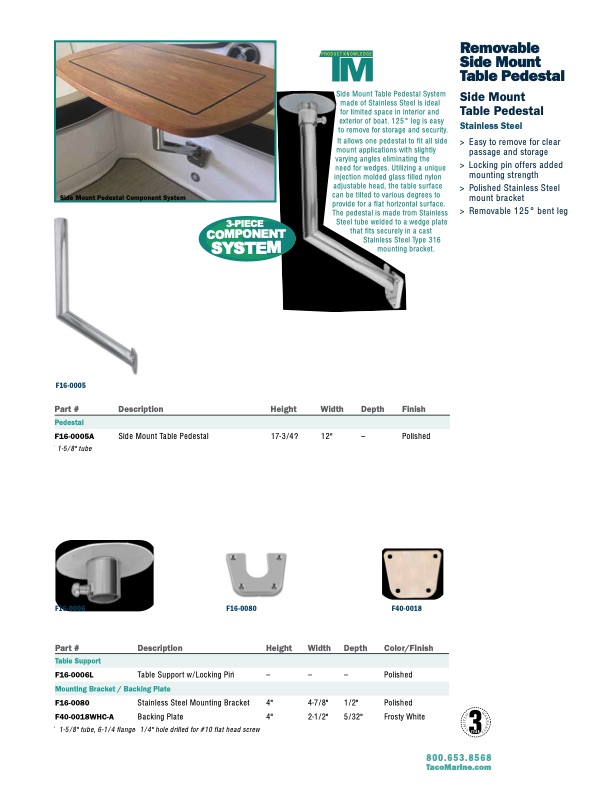

STAINLESS STEEL SIDE MOUNT TABLE PEDESTAL Side Mount Pedestal Component System F16-0005 Part # Pedestal F16-0005A 1-5/8" tube Description Side Mount Table Pedestal Height 17-3/4 Width Depth – Finish Polished PRODUCT KNOWLEDGE Removable Side Mount Table Pedestal Side Mount Table Pedestal Stainless Steel > Easy to remove for clear passage and storage Side Mount Table Pedestal System Fmade of Stainless Steel is ideal for limited space in interior and It allows one pedestal to fit all side mount applications with slightly varying angles eliminating the need for wedges. Utilizing a unique injection molded glass filled nylon adjustable head, the table surface can be tilted to various degrees to provide for a flat horizontal surface. The pedestal is made from Stainless Steel tube welded to a wedge plate that fits securely in a cast extP erior of boat. 125° leg is easy to remove for storage and security. Stainless Steel Type 316 mounting bracket. > Locking pin offers added mounting strength > Polished Stainless Steel mount bracket > Removable 125° bent leg F16-0006 Part # Table Support F16-0006L Description Height – 4" 4" Width – 4-7/8" 2-1/2" Depth – 1/2" 5/32" F16-0080 F40-0018 Color/Finish Polished Polished Frosty White 12" Table Support w/Locking Pin Mounting Bracket / Backing Plate F16-0080 Stainless Steel Mounting Bracket F40-0018WHC-A Backing Plate 1-5/8" tube, 6-1/4 flange 1/4" hole drilled for #10 flat head screw 800.653.8568 TacoMarine.com SP15 3-PIECE COMPONENT SYSTEM
