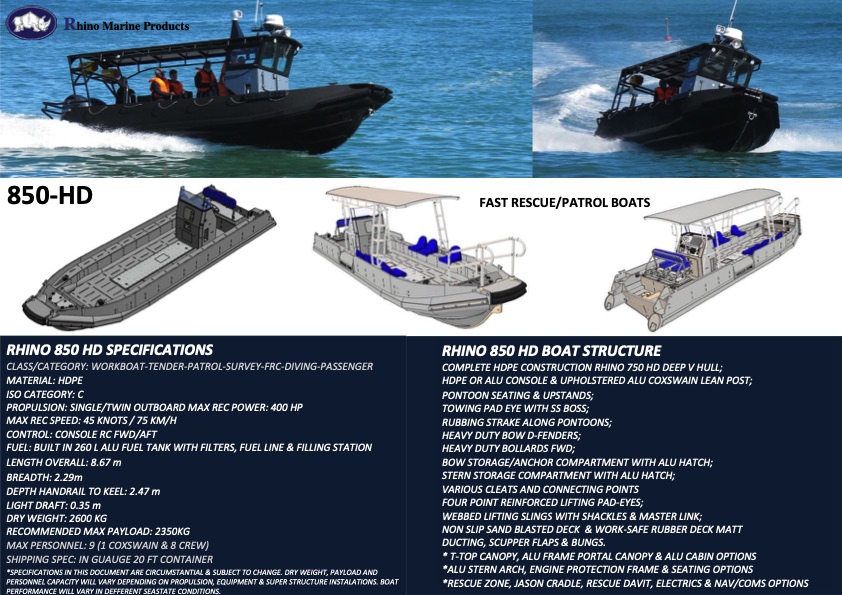

850-HD FAST RESCUE/PATROL BOATS Rhino Marine Products RHINO 850 HD SPECIFICATIONS RHINO 850 HD BOAT STRUCTURE CLASS/CATEGORY: WORKBOAT-TENDER-PATROL-SURVEY-FRC-DIVING-PASSENGER COMPLETE HDPE CONSTRUCTION RHINO 750 HD DEEP V HULL; HDPE OR ALU CONSOLE & UPHOLSTERED ALU COXSWAIN LEAN POST; PONTOON SEATING & UPSTANDS; TOWING PAD EYE WITH SS BOSS; RUBBING STRAKE ALONG PONTOONS; HEAVY DUTY BOW D-FENDERS; HEAVY DUTY BOLLARDS FWD; BOW STORAGE/ANCHOR COMPARTMENT WITH ALU HATCH; STERN STORAGE COMPARTMENT WITH ALU HATCH; VARIOUS CLEATS AND CONNECTING POINTS FOUR POINT REINFORCED LIFTING PAD-EYES; WEBBED LIFTING SLINGS WITH SHACKLES & MASTER LINK; NON SLIP SAND BLASTED DECK & WORK-SAFE RUBBER DECK MATT DUCTING, SCUPPER FLAPS & BUNGS. * T-TOP CANOPY, ALU FRAME PORTAL CANOPY & ALU CABIN OPTIONS *ALU STERN ARCH, ENGINE PROTECTION FRAME & SEATING OPTIONS *RESCUE ZONE, JASON CRADLE, RESCUE DAVIT, ELECTRICS & NAV/COMS OPTIONS MATERIAL: HDPE ISO CATEGORY: C PROPULSION: SINGLE/TWIN OUTBOARD MAX REC POWER: 400 HP MAX REC SPEED: 45 KNOTS / 75 KM/H CONTROL: CONSOLE RC FWD/AFT FUEL: BUILT IN 260 L ALU FUEL TANK WITH FILTERS, FUEL LINE & FILLING STATION LENGTH OVERALL: 8.67 m BREADTH: 2.29m DEPTH HANDRAIL TO KEEL: 2.47 m LIGHT DRAFT: 0.35 m DRY WEIGHT: 2600 KG RECOMMENDED MAX PAYLOAD: 2350KG MAX PERSONNEL: 9 (1 COXSWAIN & 8 CREW) SHIPPING SPEC: IN GUAUGE 20 FT CONTAINER *SPECIFICATIONS IN THIS DOCUMENT ARE CIRCUMSTANTIAL & SUBJECT TO CHANGE. DRY WEIGHT, PAYLOAD AND PERSONNEL CAPACITY WILL VARY DEPENDING ON PROPULSION, EQUIPMENT & SUPER STRUCTURE INSTALATIONS. BOAT PERFORMANCE WILL VARY IN DEFFERENT SEASTATE CONDITIONS.PDF Image | Rhino Marine Products
