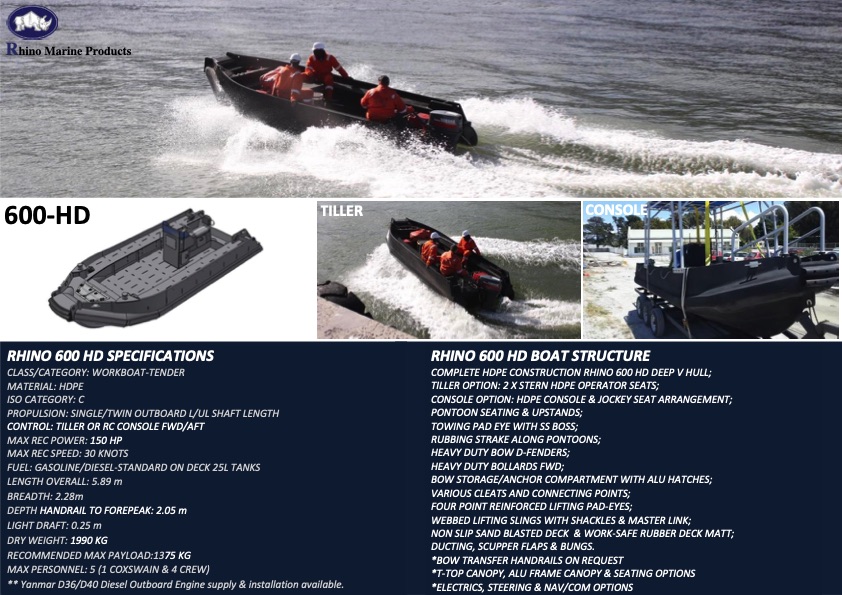

Rhino Marine Products 600-HD TILLER CONSOLE RHINO 600 HD SPECIFICATIONS RHINO 600 HD BOAT STRUCTURE CLASS/CATEGORY: WORKBOAT-TENDER MATERIAL: HDPE ISO CATEGORY: C PROPULSION: SINGLE/TWIN OUTBOARD L/UL SHAFT LENGTH CONTROL: TILLER OR RC CONSOLE FWD/AFT COMPLETE HDPE CONSTRUCTION RHINO 600 HD DEEP V HULL; TILLER OPTION: 2 X STERN HDPE OPERATOR SEATS; CONSOLE OPTION: HDPE CONSOLE & JOCKEY SEAT ARRANGEMENT; PONTOON SEATING & UPSTANDS; MAX REC POWER: 150 HP MAX REC SPEED: 30 KNOTS FUEL: GASOLINE/DIESEL-STANDARD ON DECK 25L TANKS LENGTH OVERALL: 5.89 m BREADTH: 2.28m DEPTH HANDRAIL TO FOREPEAK: 2.05 m LIGHT DRAFT: 0.25 m DRY WEIGHT: 1990 KG RECOMMENDED MAX PAYLOAD:1375 KG MAX PERSONNEL: 5 (1 COXSWAIN & 4 CREW) ** Yanmar D36/D40 Diesel Outboard Engine supply & installation available. TOWING PAD EYE WITH SS BOSS; RUBBING STRAKE ALONG PONTOONS; HEAVY DUTY BOW D-FENDERS; HEAVY DUTY BOLLARDS FWD; BOW STORAGE/ANCHOR COMPARTMENT WITH ALU HATCHES; VARIOUS CLEATS AND CONNECTING POINTS; FOUR POINT REINFORCED LIFTING PAD-EYES; WEBBED LIFTING SLINGS WITH SHACKLES & MASTER LINK; NON SLIP SAND BLASTED DECK & WORK-SAFE RUBBER DECK MATT; DUCTING, SCUPPER FLAPS & BUNGS. *BOW TRANSFER HANDRAILS ON REQUEST *T-TOP CANOPY, ALU FRAME CANOPY & SEATING OPTIONS *ELECTRICS, STEERING & NAV/COM OPTIONSPDF Image | Rhino Marine Products
