PDF Publication Title:
Text from PDF Page: 003

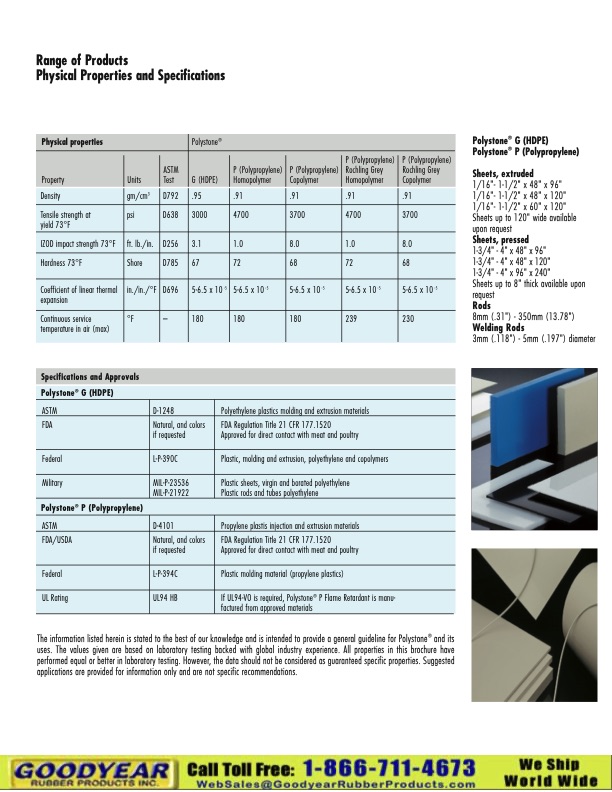

Range of Products Physical Properties and Specifications Physical properties Polystone® ASTM Property Units Test P (Polypropylene) P (Polypropylene) P (Polypropylene) Rochling Grey G (HDPE) Homopolymer Copolymer Homopolymer P (Polypropylene) Rochling Grey Copolymer Density gm/cm3 D792 .95 .91 .91 .91 .91 Tensile strength at yield 73°F psi D638 3000 4700 3700 4700 3700 IZOD impact strength 73°F ft. lb./in. D256 3.1 1.0 8.0 1.0 8.0 Hardness 73°F Shore D785 67 72 68 72 68 Coefficient of linear thermal expansion in./in./°F D696 5-6.5 x 10-5 5-6.5 x 10-5 5-6.5 x 10-5 5-6.5 x 10-5 5-6.5 x 10-5 Continuous service temperature in air (max) °F – 180 180 180 239 230 Polystone® G (HDPE) Polystone® P (Polypropylene) Sheets, extruded 1/16"- 1-1/2" x 48" x 96" 1/16"- 1-1/2" x 48" x 120" 1/16"- 1-1/2" x 60" x 120" Sheets up to 120" wide available upon request Sheets, pressed 1-3/4"-4"x48"x96" 1-3/4"-4"x48"x120" 1-3/4"-4"x96"x240" Sheets up to 8" thick available upon request Rods 8mm (.31") - 350mm (13.78") Welding Rods 3mm (.118") - 5mm (.197") diameter Specifications and Approvals Polystone® G (HDPE) ASTM D-1248 Polyethylene plastics molding and extrusion materials FDA Natural, and colors if requested FDA Regulation Title 21 CFR 177.1520 Approved for direct contact with meat and poultry Federal L-P-390C Plastic, molding and extrusion, polyethylene and copolymers Military MIL-P-23536 MIL-P-21922 Plastic sheets, virgin and borated polyethylene Plastic rods and tubes polyethylene Polystone® P (Polypropylene) ASTM D-4101 Propylene plastis injection and extrusion materials FDA/USDA Natural, and colors if requested FDA Regulation Title 21 CFR 177.1520 Approved for direct contact with meat and poultry Federal L-P-394C Plastic molding material (propylene plastics) UL Rating UL94 HB If UL94-VO is required, Polystone® P Flame Retardant is manu- factured from approved materials The information listed herein is stated to the best of our knowledge and is intended to provide a general guideline for Polystone® and its uses. The values given are based on laboratory testing backed with global industry experience. All properties in this brochure have performed equal or better in laboratory testing. However, the data should not be considered as guaranteed specific properties. Suggested applications are provided for information only and are not specific recommendations.PDF Image | Polystone G(HDPE)
PDF Search Title:
Polystone G(HDPE)Original File Name Searched:
Plastic_Sheet_Material.pdfDIY PDF Search: Google It | Yahoo | Bing
