Text from PDF Page: 012

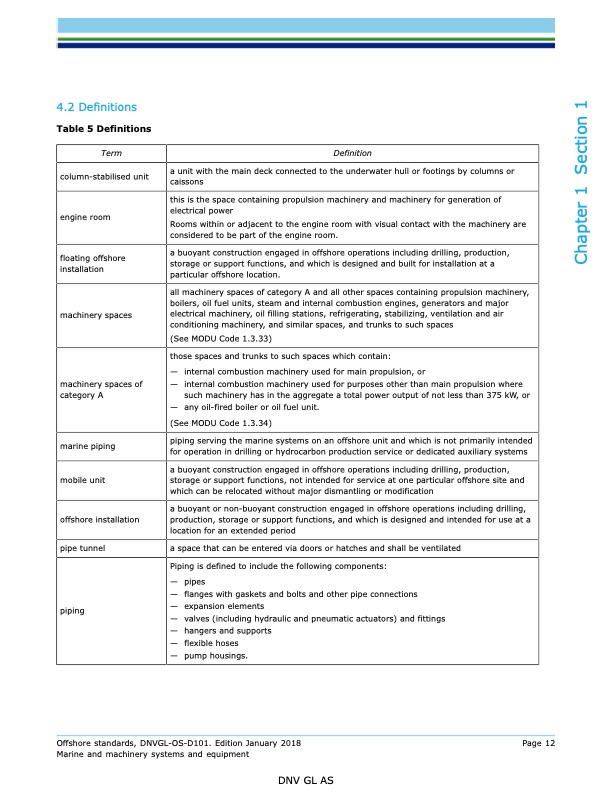

4.2 Definitions Table 5 Definitions Term column-stabilised unit floating offshore installation Definition a unit with the main deck connected to the underwater hull or footings by columns or caissons a buoyant construction engaged in offshore operations including drilling, production, storage or support functions, and which is designed and built for installation at a particular offshore location. engine room this is the space containing propulsion machinery and machinery for generation of electrical power Rooms within or adjacent to the engine room with visual contact with the machinery are considered to be part of the engine room. machinery spaces all machinery spaces of category A and all other spaces containing propulsion machinery, boilers, oil fuel units, steam and internal combustion engines, generators and major electrical machinery, oil filling stations, refrigerating, stabilizing, ventilation and air conditioning machinery, and similar spaces, and trunks to such spaces (See MODU Code 1.3.33) machinery spaces of category A those spaces and trunks to such spaces which contain: — internal combustion machinery used for main propulsion, or — internal combustion machinery used for purposes other than main propulsion where such machinery has in the aggregate a total power output of not less than 375 kW, or — anyoil-firedboileroroilfuelunit. (See MODU Code 1.3.34) marine piping mobile unit offshore installation pipe tunnel piping serving the marine systems on an offshore unit and which is not primarily intended for operation in drilling or hydrocarbon production service or dedicated auxiliary systems a buoyant construction engaged in offshore operations including drilling, production, storage or support functions, not intended for service at one particular offshore site and which can be relocated without major dismantling or modification a buoyant or non-buoyant construction engaged in offshore operations including drilling, production, storage or support functions, and which is designed and intended for use at a location for an extended period a space that can be entered via doors or hatches and shall be ventilated piping Piping is defined to include the following components: — pipes — flanges with gaskets and bolts and other pipe connections — expansion elements — valves(includinghydraulicandpneumaticactuators)andfittings — hangers and supports — flexible hoses — pump housings. Offshore standards, DNVGL-OS-D101. Edition January 2018 Page 12 Marine and machinery systems and equipment DNV GL AS Chapter 1 Section 1PDF Image | Marine and machinery systems and equipment 2018
