PDF Publication Title:
Text from PDF Page: 006

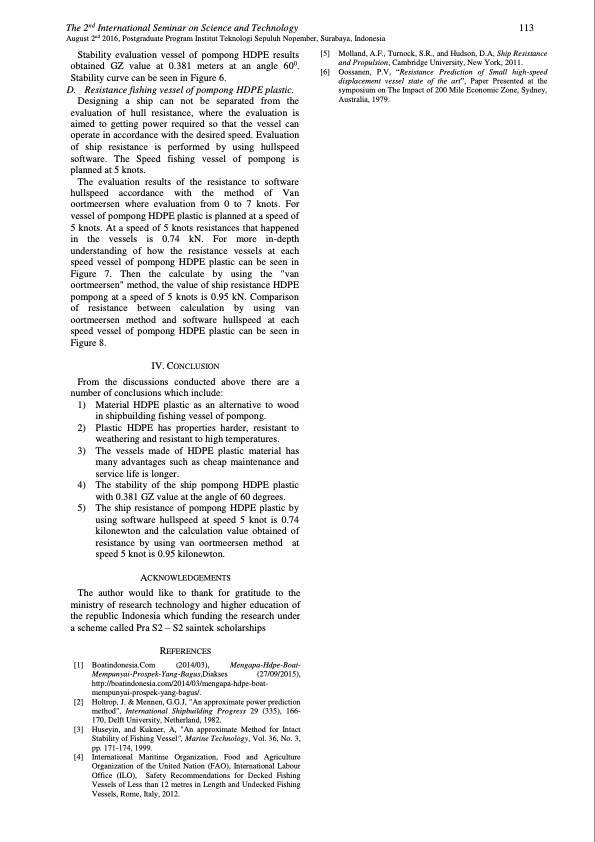

The 2nd International Seminar on Science and Technology 113 August 2nd 2016, Postgraduate Program Institut Teknologi Sepuluh Nopember, Surabaya, Indonesia Stability evaluation vessel of pompong HDPE results obtained GZ value at 0.381 meters at an angle 600. Stability curve can be seen in Figure 6. D. Resistance fishing vessel of pompong HDPE plastic. Designing a ship can not be separated from the evaluation of hull resistance, where the evaluation is aimed to getting power required so that the vessel can operate in accordance with the desired speed. Evaluation of ship resistance is performed by using hullspeed software. The Speed fishing vessel of pompong is planned at 5 knots. The evaluation results of the resistance to software hullspeed accordance with the method of Van oortmeersen where evaluation from 0 to 7 knots. For vessel of pompong HDPE plastic is planned at a speed of 5 knots. At a speed of 5 knots resistances that happened in the vessels is 0.74 kN. For more in-depth understanding of how the resistance vessels at each speed vessel of pompong HDPE plastic can be seen in Figure 7. Then the calculate by using the "van oortmeersen" method, the value of ship resistance HDPE pompong at a speed of 5 knots is 0.95 kN. Comparison of resistance between calculation by using van oortmeersen method and software hullspeed at each speed vessel of pompong HDPE plastic can be seen in Figure 8. IV. CONCLUSION From the discussions conducted above there are a number of conclusions which include: 1) Material HDPE plastic as an alternative to wood in shipbuilding fishing vessel of pompong. 2) Plastic HDPE has properties harder, resistant to weathering and resistant to high temperatures. 3) The vessels made of HDPE plastic material has many advantages such as cheap maintenance and service life is longer. 4) The stability of the ship pompong HDPE plastic with 0.381 GZ value at the angle of 60 degrees. 5) The ship resistance of pompong HDPE plastic by using software hullspeed at speed 5 knot is 0.74 kilonewton and the calculation value obtained of resistance by using van oortmeersen method at speed 5 knot is 0.95 kilonewton. ACKNOWLEDGEMENTS The author would like to thank for gratitude to the ministry of research technology and higher education of the republic Indonesia which funding the research under a scheme called Pra S2 – S2 saintek scholarships REFERENCES [1] Boatindonesia.Com (2014/03), Mengapa-Hdpe-Boat- Mempunyai-Prospek-Yang-Bagus,Diakses (27/09/2015), http://boatindonesia.com/2014/03/mengapa-hdpe-boat- mempunyai-prospek-yang-bagus/. [2] Holtrop, J. & Mennen, G.G.J, "An approximate power prediction method", International Shipbuilding Progress 29 (335), 166- 170, Delft University, Netherland, 1982. [3] Huseyin, and Kukner, A, "An approximate Method for Intact Stability of Fishing Vessel", Marine Technology, Vol. 36, No. 3, pp. 171-174, 1999. [4] International Maritime Organization, Food and Agriculture Organization of the United Nation (FAO), International Labour Office (ILO), Safety Recommendations for Decked Fishing Vessels of Less than 12 metres in Length and Undecked Fishing Vessels, Rome, Italy, 2012. [5] Molland, A.F., Turnock, S.R., and Hudson, D.A, Ship Resistance and Propulsion, Cambridge University, New York, 2011. [6] Oossanen, P.V, “Resistance Prediction of Small high-speed displacement vessel state of the art”, Paper Presented at the symposium on The Impact of 200 Mile Economic Zone, Sydney, Australia, 1979.PDF Image | High Density Polyethylene (HDPE) Vessel of Pompong as a Fishing Vessel
PDF Search Title:
High Density Polyethylene (HDPE) Vessel of Pompong as a Fishing VesselOriginal File Name Searched:
173518-EN-high-density-polyethylene-hdpe-vessel-of.pdfDIY PDF Search: Google It | Yahoo | Bing
