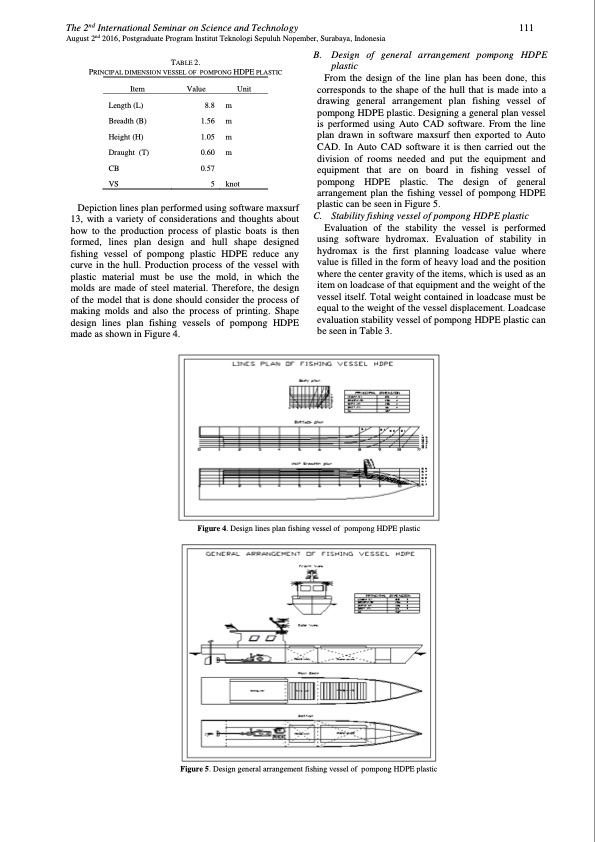

The 2nd International Seminar on Science and Technology 111 August 2nd 2016, Postgraduate Program Institut Teknologi Sepuluh Nopember, Surabaya, Indonesia TABLE 2. PRINCIPALDIMENSIONVESSELOF POMPONGHDPEPLASTIC B. Design of general arrangement pompong HDPE plastic From the design of the line plan has been done, this corresponds to the shape of the hull that is made into a drawing general arrangement plan fishing vessel of pompong HDPE plastic. Designing a general plan vessel is performed using Auto CAD software. From the line plan drawn in software maxsurf then exported to Auto CAD. In Auto CAD software it is then carried out the division of rooms needed and put the equipment and equipment that are on board in fishing vessel of pompong HDPE plastic. The design of general arrangement plan the fishing vessel of pompong HDPE plastic can be seen in Figure 5. C. Stability fishing vessel of pompong HDPE plastic Evaluation of the stability the vessel is performed using software hydromax. Evaluation of stability in hydromax is the first planning loadcase value where value is filled in the form of heavy load and the position where the center gravity of the items, which is used as an item on loadcase of that equipment and the weight of the vessel itself. Total weight contained in loadcase must be equal to the weight of the vessel displacement. Loadcase evaluation stability vessel of pompong HDPE plastic can be seen in Table 3. Item Length (L) Breadth (B) Height (H) Draught (T) CB VS V alue 8.8 1.56 1.05 0.60 0.57 5 Unit m m m m knot Depiction lines plan performed using software maxsurf 13, with a variety of considerations and thoughts about how to the production process of plastic boats is then formed, lines plan design and hull shape designed fishing vessel of pompong plastic HDPE reduce any curve in the hull. Production process of the vessel with plastic material must be use the mold, in which the molds are made of steel material. Therefore, the design of the model that is done should consider the process of making molds and also the process of printing. Shape design lines plan fishing vessels of pompong HDPE made as shown in Figure 4. Figure 4. Design lines plan fishing vessel of pompong HDPE plastic Figure 5. Design general arrangement fishing vessel of pompong HDPE plasticPDF Image | High Density Polyethylene (HDPE) Vessel of Pompong as a Fishing Vessel
