PDF Publication Title:
Text from PDF Page: 011

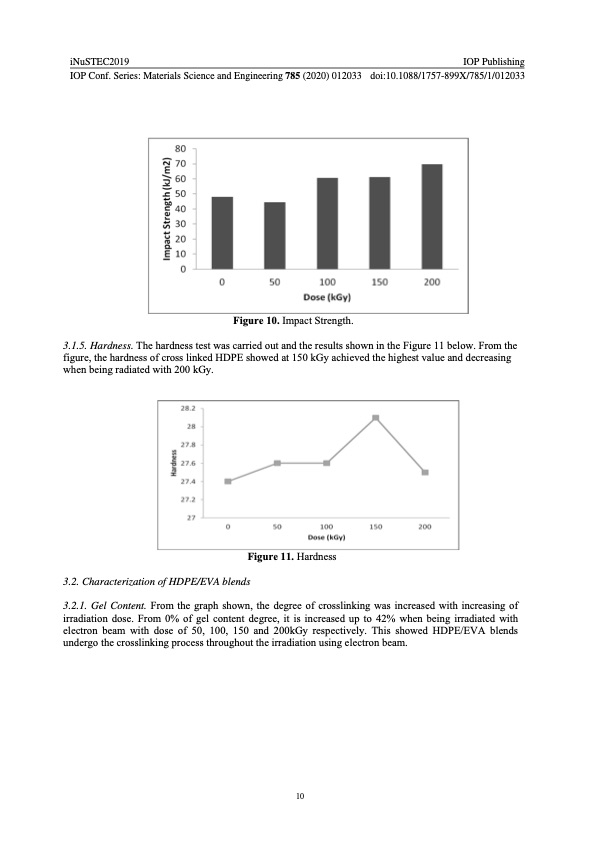

iNuSTEC2019 IOP Publishing IOP Conf. Series: Materials Science and Engineering 785 (2020) 012033 doi:10.1088/1757-899X/785/1/012033 Figure 10. Impact Strength. 3.1.5. Hardness. The hardness test was carried out and the results shown in the Figure 11 below. From the figure, the hardness of cross linked HDPE showed at 150 kGy achieved the highest value and decreasing when being radiated with 200 kGy. Figure 11. Hardness 3.2. Characterization of HDPE/EVA blends 3.2.1. Gel Content. From the graph shown, the degree of crosslinking was increased with increasing of irradiation dose. From 0% of gel content degree, it is increased up to 42% when being irradiated with electron beam with dose of 50, 100, 150 and 200kGy respectively. This showed HDPE/EVA blends undergo the crosslinking process throughout the irradiation using electron beam. 10PDF Image | HDPE floater pontoon material
PDF Search Title:
HDPE floater pontoon materialOriginal File Name Searched:
IOP_Con-785_012033.pdfDIY PDF Search: Google It | Yahoo | Bing
