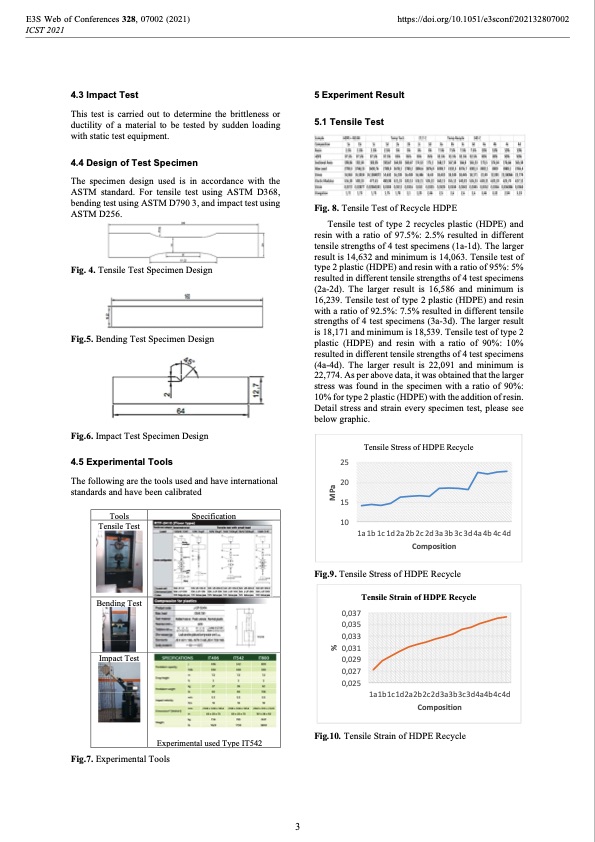

Text from PDF Page: 003
E3S Web of Conferences 328, 07002 (2021) ICST 2021 4.3 Impact Test This test is carried out to determine the brittleness or ductility of a material to be tested by sudden loading with static test equipment. 4.4 Design of Test Specimen The specimen design used is in accordance with the ASTM standard. For tensile test using ASTM D368, bending test using ASTM D790 3, and impact test using ASTM D256. Fig. 4. Tensile Test Specimen Design Fig.5. Bending Test Specimen Design Fig.6. Impact Test Specimen Design 4.5 Experimental Tools The following are the tools used and have international standards and have been calibrated Specification https://doi.org/10.1051/e3sconf/202132807002 5 Experiment Result 5.1 Tensile Test Fig. 8. Tensile Test of Recycle HDPE Tensile test of type 2 recycles plastic (HDPE) and resin with a ratio of 97.5%: 2.5% resulted in different tensile strengths of 4 test specimens (1a-1d). The larger result is 14,632 and minimum is 14,063. Tensile test of type 2 plastic (HDPE) and resin with a ratio of 95%: 5% resulted in different tensile strengths of 4 test specimens (2a-2d). The larger result is 16,586 and minimum is 16,239. Tensile test of type 2 plastic (HDPE) and resin with a ratio of 92.5%: 7.5% resulted in different tensile strengths of 4 test specimens (3a-3d). The larger result is 18,171 and minimum is 18,539. Tensile test of type 2 plastic (HDPE) and resin with a ratio of 90%: 10% resulted in different tensile strengths of 4 test specimens (4a-4d). The larger result is 22,091 and minimum is 22,774. As per above data, it was obtained that the larger stress was found in the specimen with a ratio of 90%: 10% for type 2 plastic (HDPE) with the addition of resin. Detail stress and strain every specimen test, please see below graphic. Tensile Stress of HDPE Recycle 25 20 15 10 1a1b1c1d2a2b2c2d3a3b3c3d4a4b4c4d Composition Tools Tensile Test Bending Test Impact Test Experimental used Type IT542 Fig.9. Tensile Stress of HDPE Recycle Tensile Strain of HDPE Recycle 0,037 0,035 0,033 0,031 0,029 0,027 0,025 1a1b1c1d2a2b2c2d3a3b3c3d4a4b4c4d Composition Fig.7. Experimental Tools 3 Fig.10. Tensile Strain of HDPE Recycle % MPaPDF Image | DRI-WEAVE reinforced poly featuring an 8x8 scrim pattern and HDPE coating
