Text from PDF Page: 008

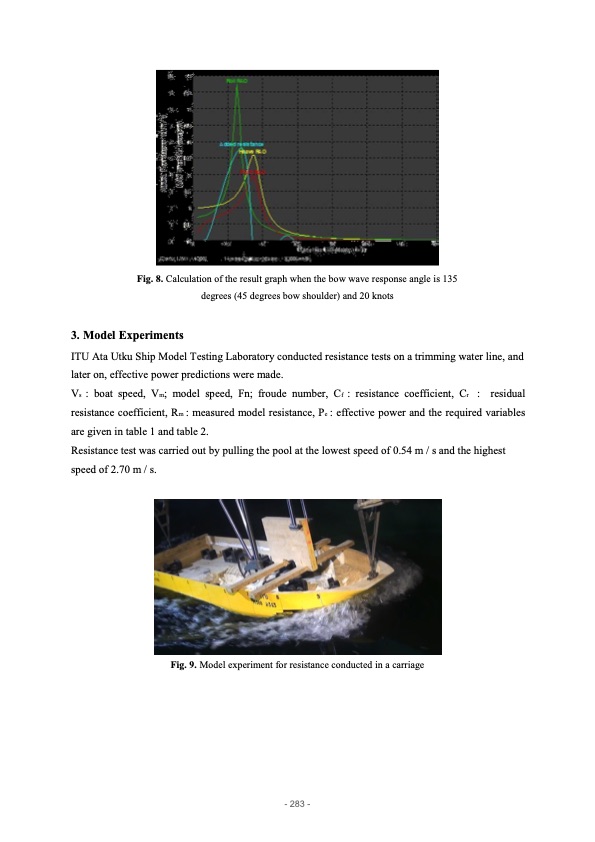

Fig. 8. Calculation of the result graph when the bow wave response angle is 135 degrees (45 degrees bow shoulder) and 20 knots 3. Model Experiments ITU Ata Utku Ship Model Testing Laboratory conducted resistance tests on a trimming water line, and later on, effective power predictions were made. Vs : boat speed, Vm; model speed, Fn; froude number, Cf : resistance coefficient, Cr : residual resistance coefficient, Rm : measured model resistance, Pe : effective power and the required variables are given in table 1 and table 2. Resistance test was carried out by pulling the pool at the lowest speed of 0.54 m / s and the highest speed of 2.70 m / s. Fig. 9. Model experiment for resistance conducted in a carriage - 283 -PDF Image | Culture Fishing Boat Design From Polyethylene Material
