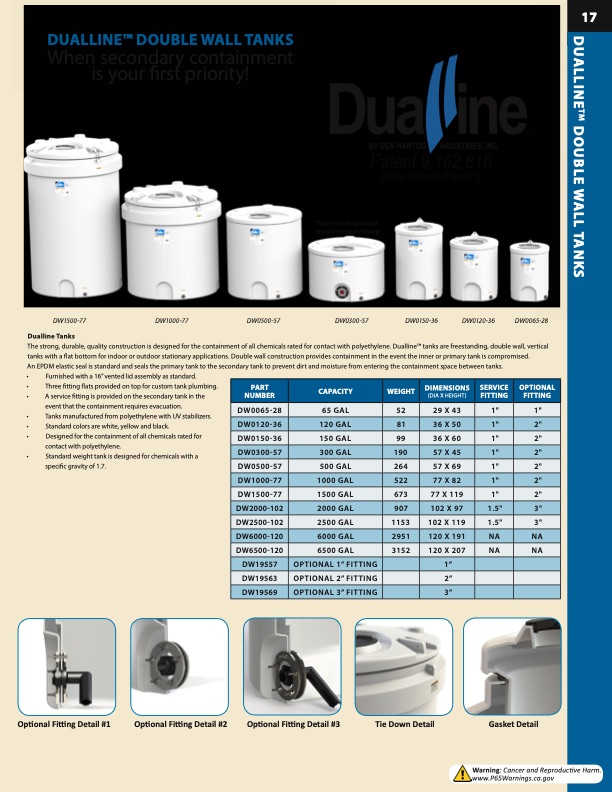

*Shown with optional factory installed fitting D W 15 0 0 - 7 7 D W 1 0 0 0 - 7 7 D W 0 5 0 0 - 5 7 D W 0 3 0 0 - 5 7 D W 0 15 0 - 3 6 D W 0 12 0 - 3 6 D W 0 0 6 5 - 2 8 Dualline Tanks The strong, durable, quality construction is designed for the containment of all chemicals rated for contact with polyethylene. DuallineTM tanks are freestanding, double wall, vertical tanks with a flat bottom for indoor or outdoor stationary applications. Double wall construction provides containment in the event the inner or primary tank is compromised. An EPDM elastic seal is standard and seals the primary tank to the secondary tank to prevent dirt and moisture from entering the containment space between tanks. • Furnished with a 16” vented lid assembly as standard. • Three fitting flats provided on top for custom tank plumbing. • A service fitting is provided on the secondary tank in the event that the containment requires evacuation. • Tanks manufactured from polyethylene with UV stabilizers. • Standard colors are white, yellow and black. • Designed for the containment of all chemicals rated for contact with polyethylene. • Standard weight tank is designed for chemicals with a specific gravity of 1.7. PART NUMBER CAPACITY WEIGHT DIMENSIONS (DIA X HEIGHT) SERVICE FITTING OPTIONAL FITTING DW0065-28 65 GAL 52 29 X 43 1" 1" DW0120-36 120 GAL 81 36 X 50 1" 2" DW0150-36 150 GAL 99 36 X 60 1" 2" DW0300-57 300 GAL 190 57 X 45 1" 2" DW0500-57 500 GAL 264 57 X 69 1" 2" DW1000-77 1000 GAL 522 77 X 82 1" 2" DW1500-77 1500 GAL 673 77 X 119 1" 2" DW2000-102 2000 GAL 907 102 X 97 1.5" 3" DW2500-102 2500 GAL 1153 102 X 119 1.5" 3" DW6000-120 6000 GAL 2951 120 X 191 NA NA DW6500-120 6500 GAL 3152 120 X 207 NA NA DW19557 OPTIONAL 1” FITTING 1” DW19563 OPTIONAL 2” FITTING 2” DW19569 OPTIONAL 3” FITTING 3” Optional Fitting Detail #1 Optional Fitting Detail #2 Optional Fitting Detail #3 Tie Down Detail Gasket Detail Warning: Cancer and Reproductive Harm. www.P65Warnings.ca.gov DUALLINETM DOUBLE WALL TANKS When secondary containment is your first priority! 17 DUALLINETM DOUBLE WALL TANKSPDF Image | Blow Molding Injection Molding Rotational
