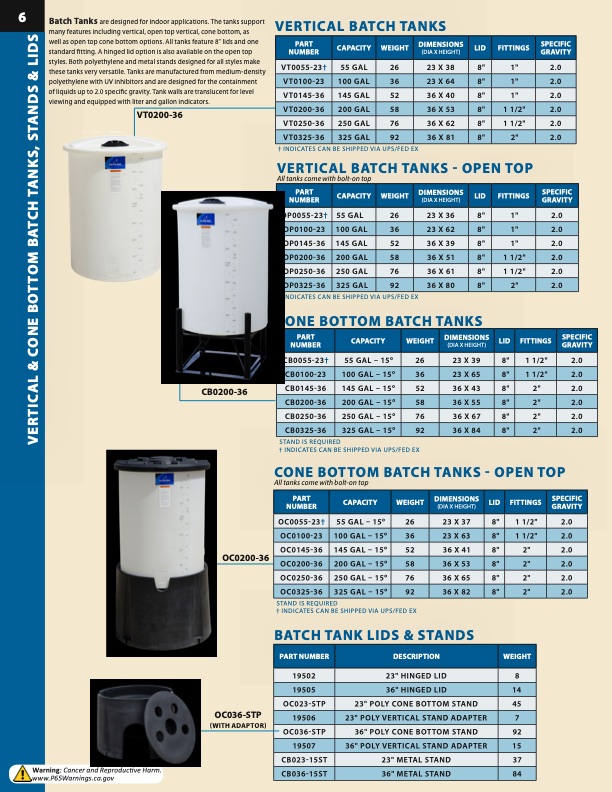

6 Batch Tanks are designed for indoor applications. The tanks support many features including vertical, open top vertical, cone bottom, as well as open top cone bottom options. All tanks feature 8" lids and one standard fitting. A hinged lid option is also available on the open top styles. Both polyethylene and metal stands designed for all styles make these tanks very versatile. Tanks are manufactured from medium-density polyethylene with UV inhibitors and are designed for the containment of liquids up to 2.0 specific gravity. Tank walls are translucent for level viewing and equipped with liter and gallon indicators. VT0200-36 VERTICAL BATCH TANKS PART NUMBER CAPACITY WEIGHT DIMENSIONS (DIA X HEIGHT) LID FITTINGS SPECIFIC GRAVITY VT0055-23† 55 GAL 26 VT0100-23 100 GAL 36 23 X 64 8" 1" 2.0 23 X 38 8" 1" 2.0 VT0145-36 145 GAL 52 36 X 40 8" 1" 2.0 VT0200-36 200 GAL 58 36 X 53 8" 1 1/2" 2.0 VT0250-36 250 GAL 76 VT0325-36 325 GAL 92 36 X 81 8" 2" 2.0 36 X 62 8" 1 1/2" 2.0 † INDICATES CAN BE SHIPPED VIA UPS/FED EX VERTICAL BATCH TANKS - OPEN TOP All tanks come with bolt-on top PART NUMBER CAPACITY WEIGHT DIMENSIONS (DIA X HEIGHT) LID FITTINGS SPECIFIC GRAVITY OP0055-23† 55 GAL 26 23 X 36 8" 1" 2.0 OP0100-23 100 GAL 36 23 X 62 8" 1" 2.0 OP0145-36 145 GAL 52 36 X 39 1" 2.0 OP0200-36 200 GAL 58 36 X 51 8" 1 1/2" 2.0 8" OP0250-36 250 GAL 76 36 X 61 8" 1 1/2" 2.0 OP0325-36 325 GAL 92 36 X 80 8" 2" 2.0 † INDICATES CAN BE SHIPPED VIA UPS/FED EX CONE BOTTOM BATCH TANKS PART NUMBER CAPACITY WEIGHT DIMENSIONS (DIA X HEIGHT) LID FITTINGS SPECIFIC GRAVITY CB0200-36 CB0055-23† 55 GAL – 15o 26 23 X 39 1 1/2" 2.0 CB0100-23 100 GAL – 15o 36 23 X 65 8" 1 1/2" 2.0 8" CB0145-36 145 GAL – 15o 52 CB0200-36 200 GAL – 15o 58 36 X 55 8" 2" 2.0 36 X 43 8" 2" 2.0 CB0250-36 250 GAL – 15o 76 36 X 67 8" 2" 2.0 CB0325-36 325 GAL – 15o 92 36 X 84 8" 2" 2.0 STAND IS REQUIRED † INDICATES CAN BE SHIPPED VIA UPS/FED EX CONE BOTTOM BATCH TANKS - OPEN TOP All tanks come with bolt-on top PART NUMBER CAPACITY WEIGHT DIMENSIONS (DIA X HEIGHT) LID FITTINGS SPECIFIC GRAVITY OC0200-36 OC0055-23† 55 GAL – 15o 26 OC0100-23 100 GAL – 15o 36 23 X 63 8" 1 1/2" 2.0 23 X 37 8" 1 1/2" 2.0 OC0145-36 OC0200-36 145 GAL – 15o 200 GAL – 15o 52 58 36 X 41 36 X 53 8" 8" 2" 2" 2.0 2.0 OC0250-36 250 GAL – 15o 76 OC0325-36 325 GAL – 15o 92 36 X 82 8" 2" 2.0 36 X 65 8" 2" 2.0 STAND IS REQUIRED † INDICATES CAN BE SHIPPED VIA UPS/FED EX BATCH TANK LIDS & STANDS PART NUMBER DESCRIPTION Warning: Cancer and Reproductive Harm. www.P65Warnings.ca.gov OC036-STP (WITH ADAPTOR) 23" POLY CONE BOTTOM STAND WEIGHT 19502 23" HINGED LID 8 19505 36" HINGED LID 14 OC023-STP 45 19506 23" POLY VERTICAL STAND ADAPTER 7 OC036-STP 36" POLY CONE BOTTOM STAND 92 19507 36" POLY VERTICAL STAND ADAPTER 15 CB023-15ST 23" METAL STAND 37 CB036-15ST 36" METAL STAND 84 VERTICAL & CONE BOTTOM BATCH TANKS, STANDS & LIDSPDF Image | Blow Molding Injection Molding Rotational
