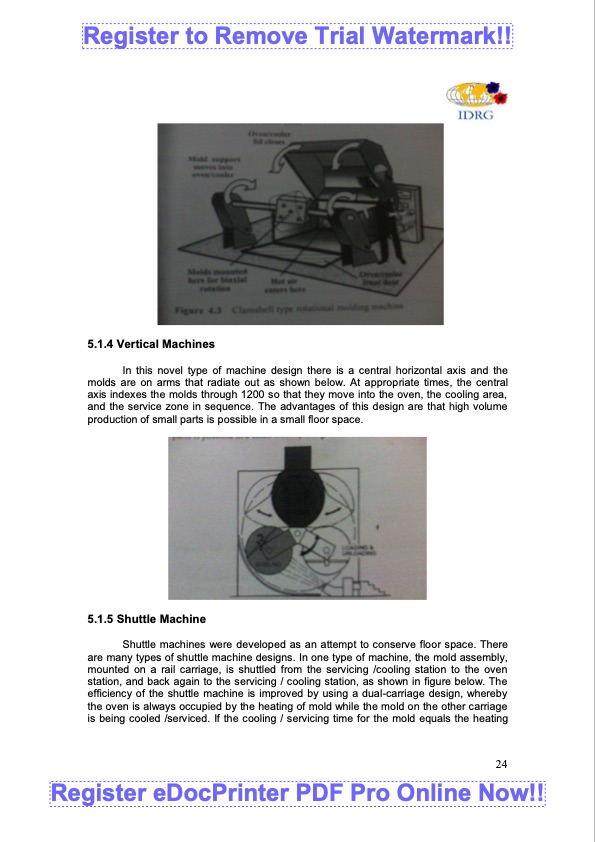

Register to Remove Trial Watermark!! 5.1.4 Vertical Machines In this novel type of machine design there is a central horizontal axis and the molds are on arms that radiate out as shown below. At appropriate times, the central axis indexes the molds through 1200 so that they move into the oven, the cooling area, and the service zone in sequence. The advantages of this design are that high volume production of small parts is possible in a small floor space. 5.1.5 Shuttle Machine Shuttle machines were developed as an attempt to conserve floor space. There are many types of shuttle machine designs. In one type of machine, the mold assembly, mounted on a rail carriage, is shuttled from the servicing /cooling station to the oven station, and back again to the servicing / cooling station, as shown in figure below. The efficiency of the shuttle machine is improved by using a dual-carriage design, whereby the oven is always occupied by the heating of mold while the mold on the other carriage is being cooled /serviced. If the cooling / servicing time for the mold equals the heating 24 Register eDocPrinter PDF Pro Online Now!!PDF Image | ANALYSIS OF ROTO-MOULDED PLASTIC CONTAINERS
